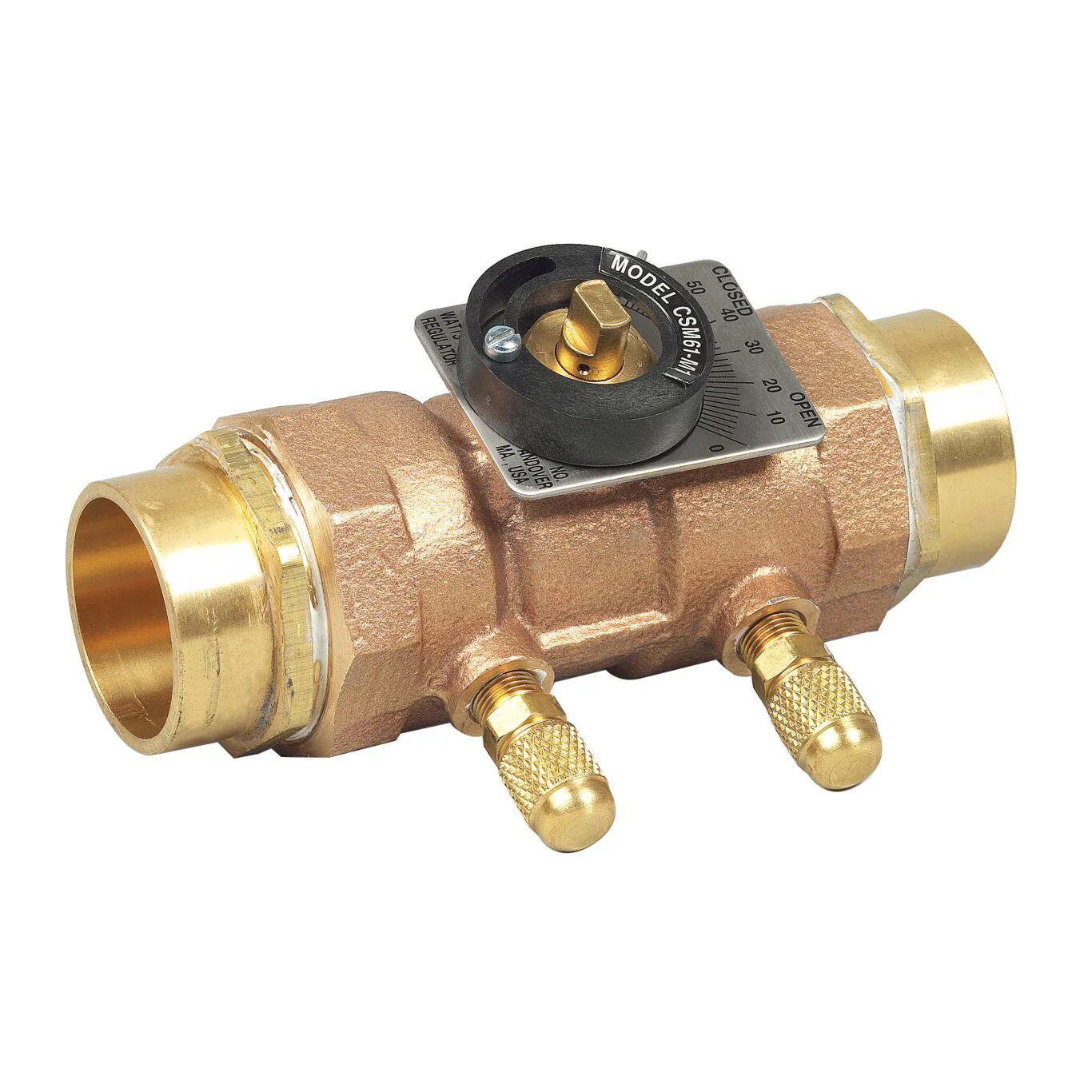

This 1/2 inch lead free flow measurement valve monitors system flow in low to medium flow rate HVAC units, providing a highly accurate flow measurement. It consists of lead free body construction with bi-directional positive shutoff ball valve design, blow-out proof stem, a position indicator, memory device, checked metering ports with drip caps, two pressure taps, integral drain ports, solder connections, and a drain plug. It has a compact size which allows for easy installation and access in a crowded piping environment and is ideal in hot/chilled water units such as fan coil units, water source heat pumps, unit heaters, unit ventilators, finned radiation, and small domestic hot water lines.

Features

• Lead free body
• Bi-directional flow
• Solder ends
• Positive shutoff

Specifications
Body Material	Lead Free Brass
Brand	Watts
Buy American Act Compliant	YES
EAN	098268017748
Inlet Connection Size	1/2 IN
Inlet Connection Size-Metric	13 MM
Inlet Connection Type	Socket
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Temperature-Fahrenheit	200
Maximum Working Pressure-BAR	9.00
Maximum Working Pressure-PSI	125
Outlet Connection Size	1/2 IN
Outlet Connection Type	Socket
Outlet Thread Type	Does Not Apply To Product
Part Number	0856809
Series	LFCSM-61-S
Valve Style	Ball

• Specification Sheet - LFCSM-61-S

UPC - 098268017748
